Blinker with two transistors 2012-11-27 18:28
Power supply without stabilization 2012-11-27 18:22
Components:
D1-D4: Rectifier diodes (solid state)
C1: Electrolytic capacitor (1000 µF or larger capacity, 16 V)
T1: Transformer with secondary coil voltage up to 9-12 V
Read More...
Bipolar junction transistor operating principle 2012-11-27 18:17
Voltage in base circuit opens the transistor and in collector circuit current starts to flow. When voltage increases the current increases up to the value where the collector-emitter circuit opens and the current starts flowing there that is proportional to the current flowing through the base-emitter junction. This connection method is called common emitter configuration when emitter is connected to common ground and output voltage referenced to that ground is at the collector.
Table of Soviet/Russian transistor layouts 2012-11-27 18:01

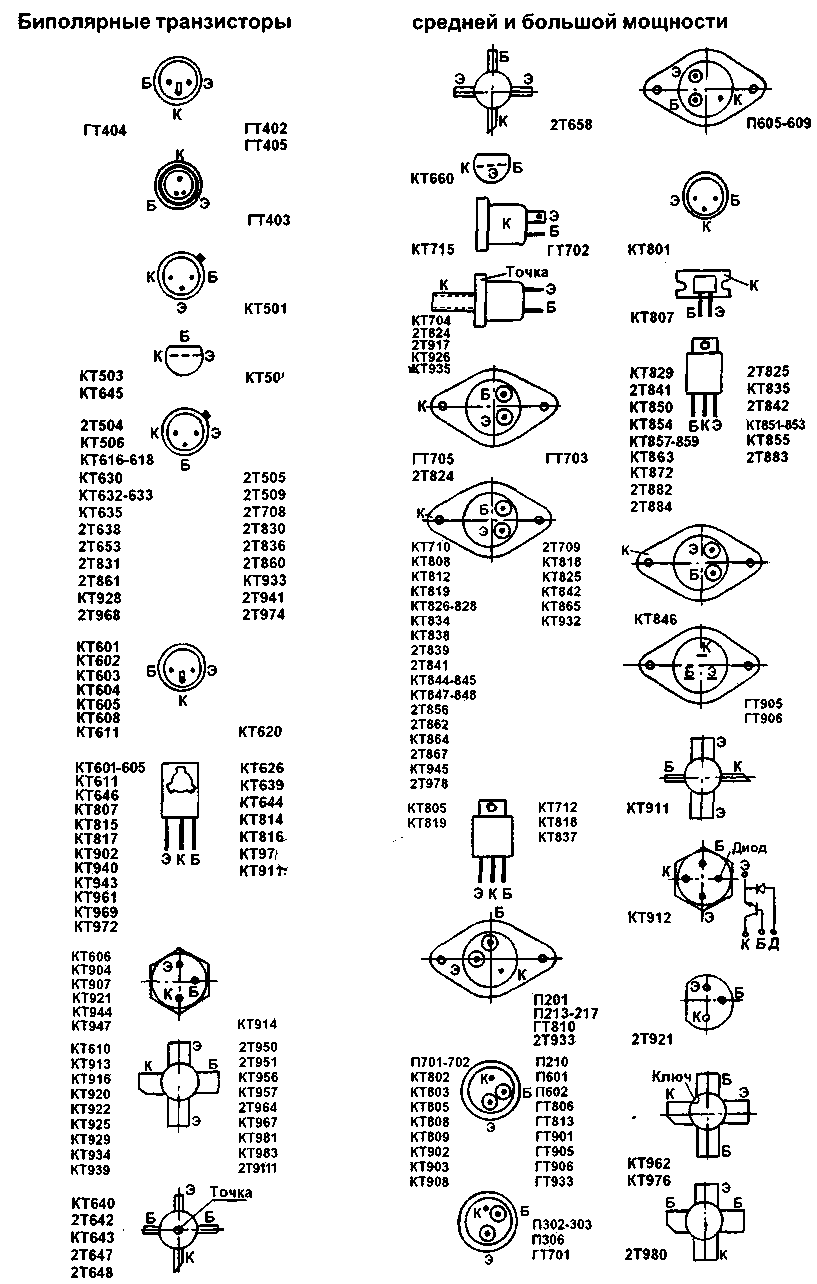

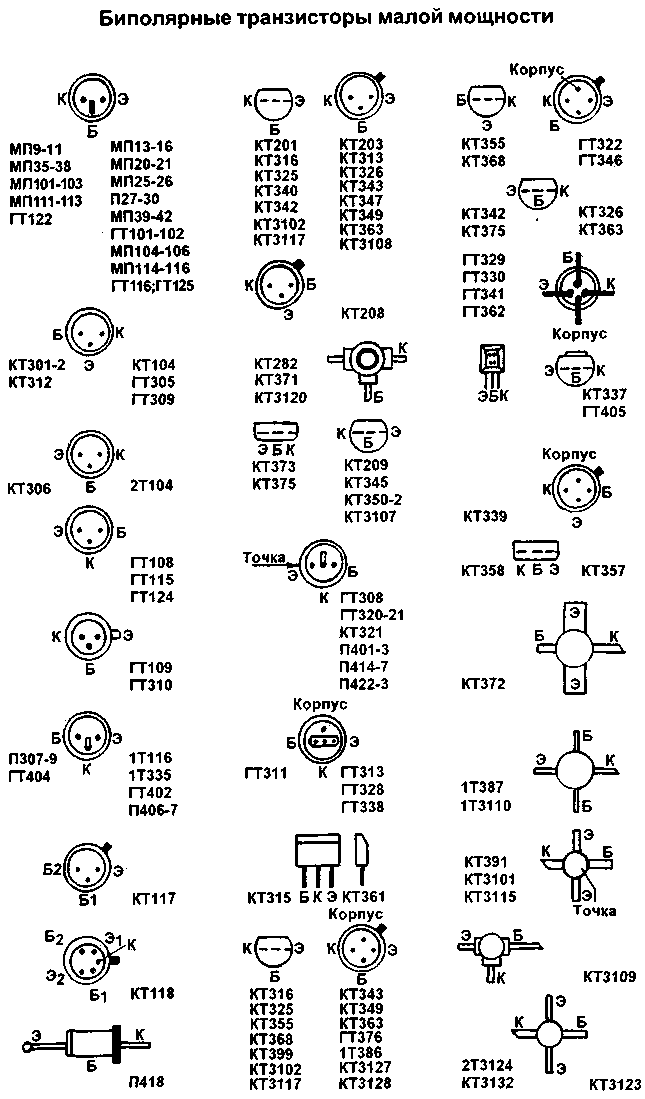

In the tables below there are the Russian/Soviet bipolar junction transistor layouts and they are listed in the Russian language.


Capacitor tester 2012-11-27 17:52

You can check many capacitors with a handy tool creaded from this schematic.
